The Driver-focused Human Machine Interface


SCROLL DOWN

The Driver-focused Human Machine Interface


WHAT IS PROBLEM

DESIGN DEFINITION

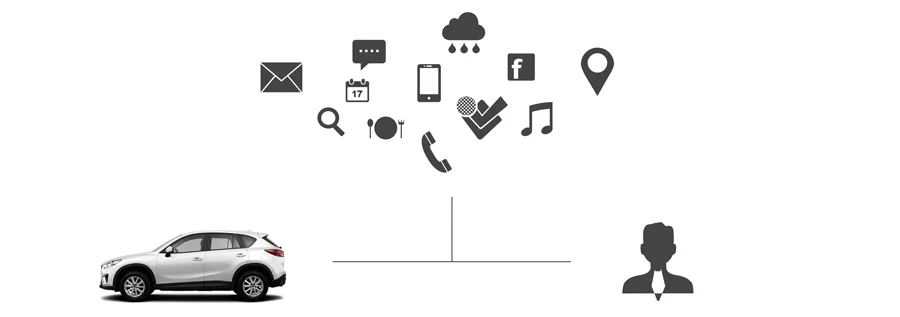

As people receive more and more information from the outside world, the vehicle—as a well-equipped and high technology carrier—must integrate this information explosion efficiently. The Human Machine Interface(HMI) is not only a communication bridge between the driver and the car itself, but is also a principle connector between the driver and outside world.





In the meantime, the relationships between in-car entertainment system and personal mobile information terminals are increasingly close, the iPhone and iPad play important roles in humans’ daily lives. The close integration of them will expand drivers’ human-machine experiences.



HOW TO DESIGN HMI

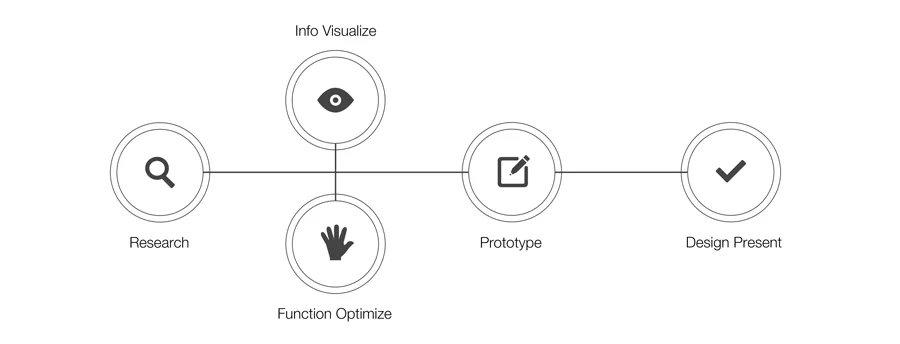

DESIGN PROCESS


Research


SCROLL DOWN

Research

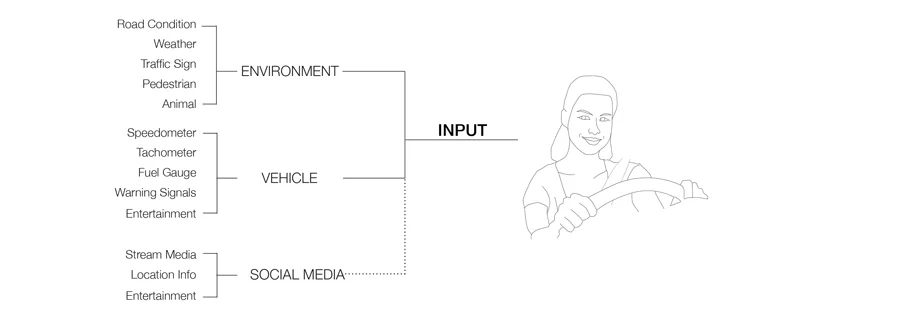

Driving is one of the most complicated human activities throughout the world. Drivers' behaviors are affected by a wide variety of impact factors both from the surrounding environment (e.g. weather, road conditions, traffic); and from drivers themselves (e.g. age, character, and driving habits).

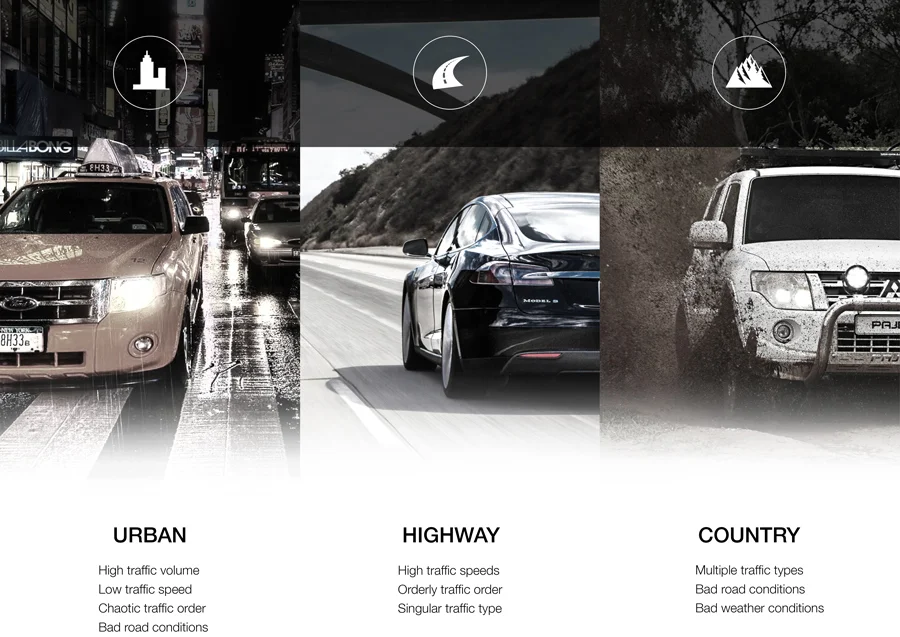

DIFFERENT ENVIRONMENTS

DRIVING SCENARIOS






DIFFERENT PEOPLE

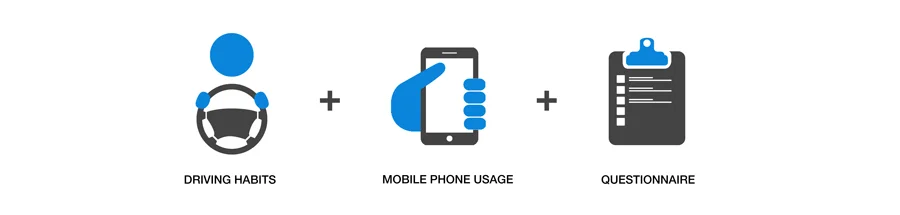

DRIVER INTERVIEWS

Click here to download questionnaire


VIS-1500jpg

Visualization


SCROLL DOWN

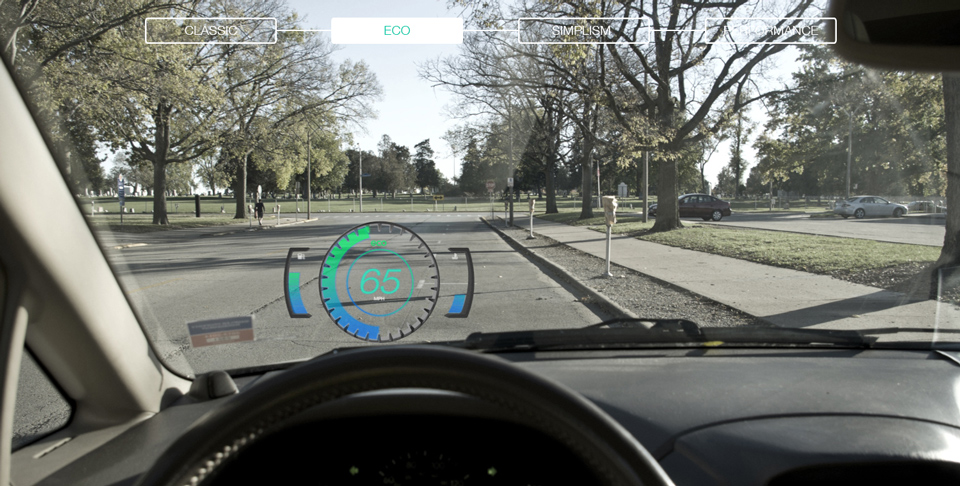

Visualization

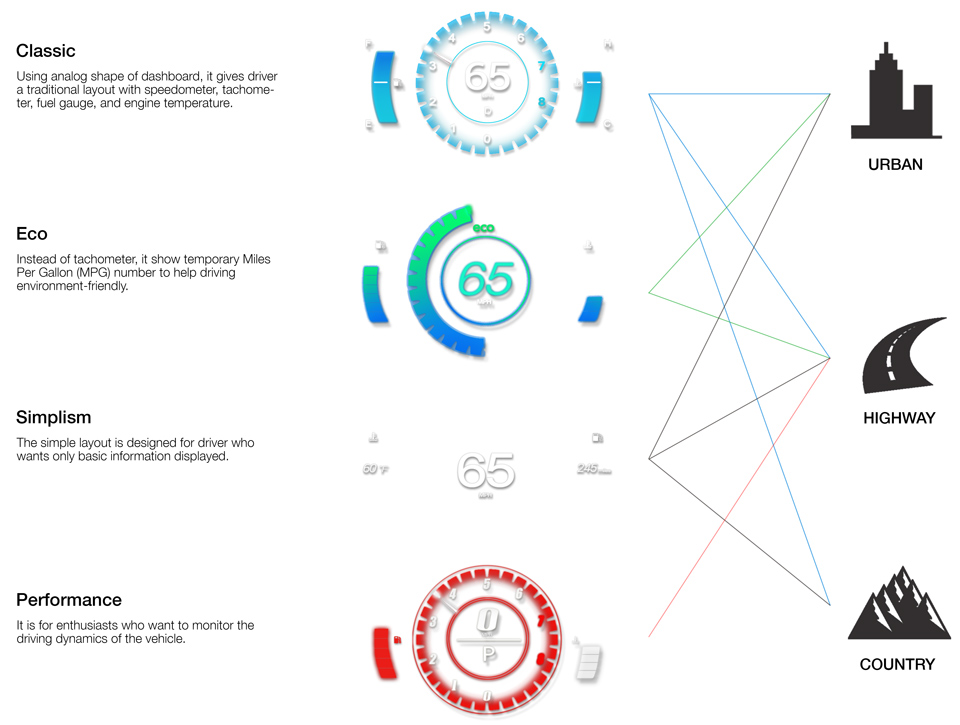

Effective visualization of driving and entertainment information help the driver control the car and focus on the road.




EAGE OF TOMORROW

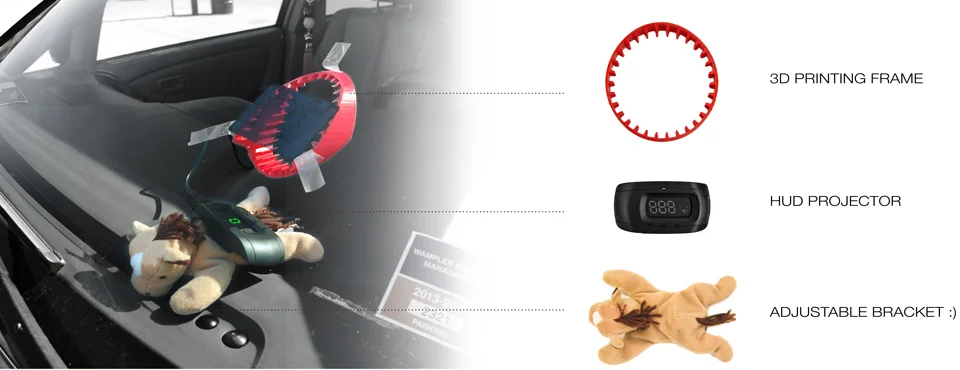

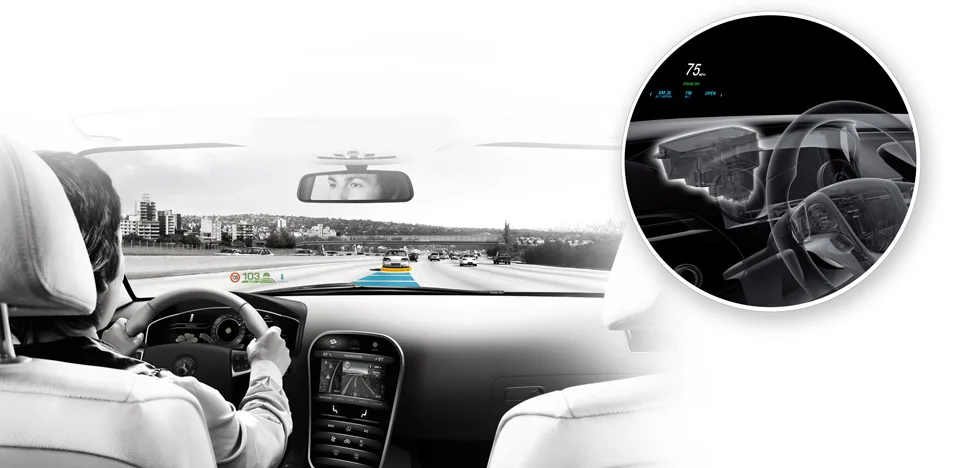

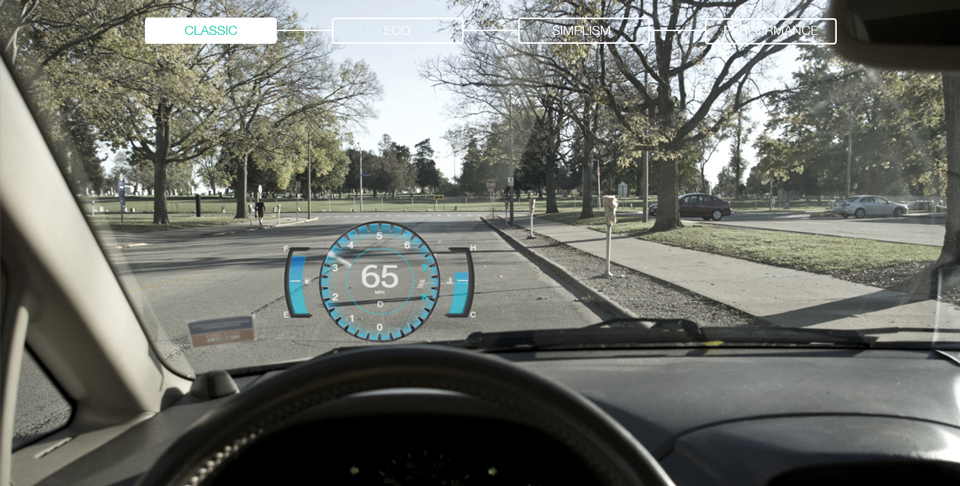

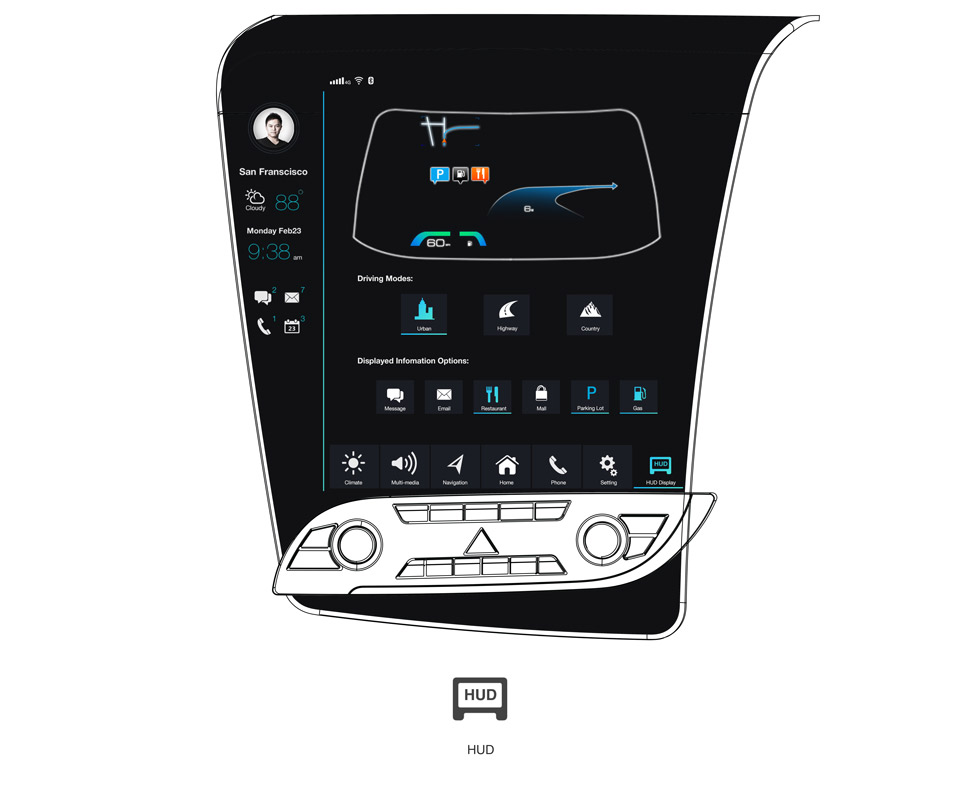

HEADS UP DISPLAY



Heads Up Display (HUD) technology is one of the most popular HMI solutions. Information is displayed directly in front of the driver onto the windshield.

HUD WITHOUT TITLE.jpg


IDEATION

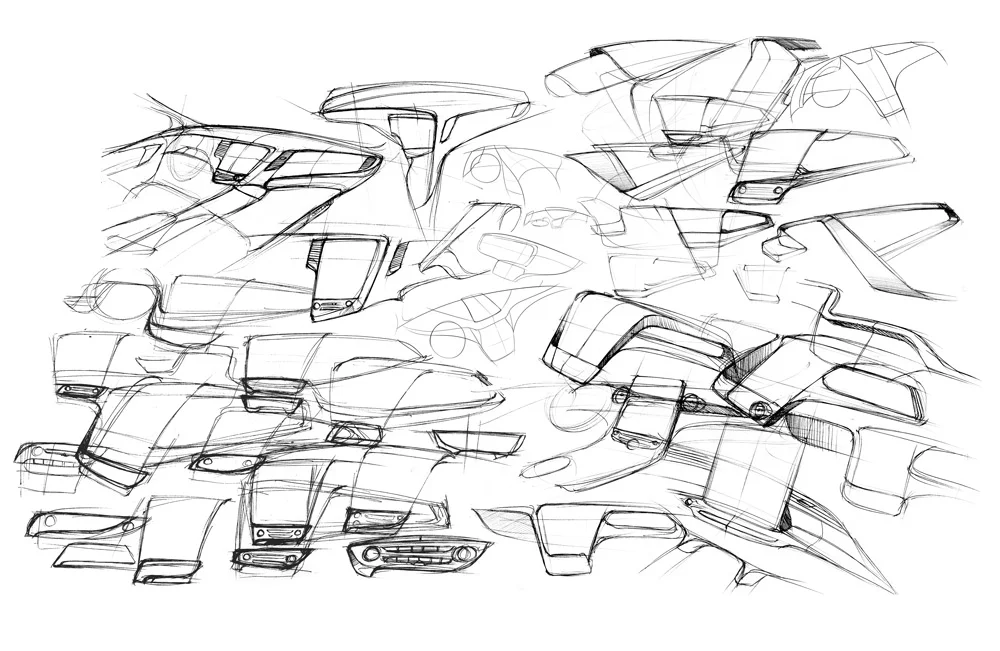

INITIAL CONCEPTS





FANTASY & REALITY

CONCEPT SIMULATION



WHEN DREAMS ENLIGHTEN THE WORLD

MOCK-UP EVALUATION





SECOND ROUND

DESIGN ITERATION & TEST

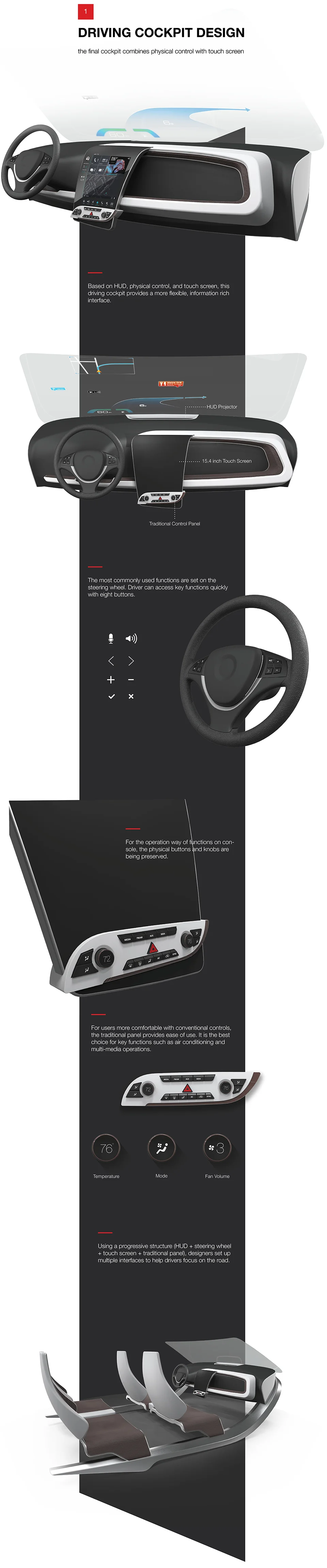

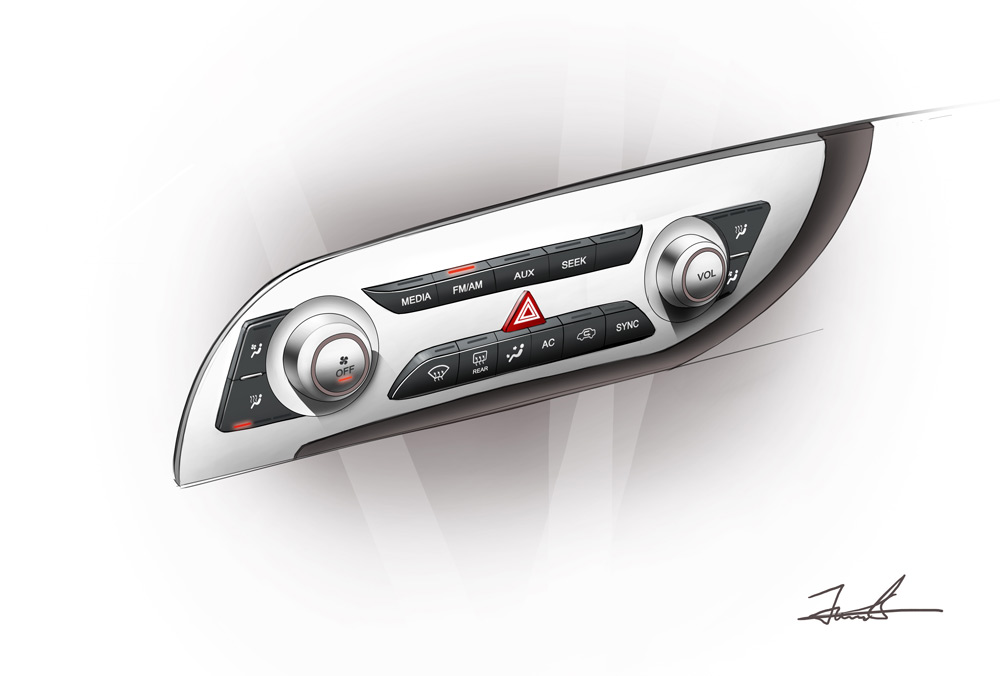

VISUALIZED FUTURE

FINAL DESIGN PRESENTATION




Function Optimization


SCROLL DOWN

Function Optimization

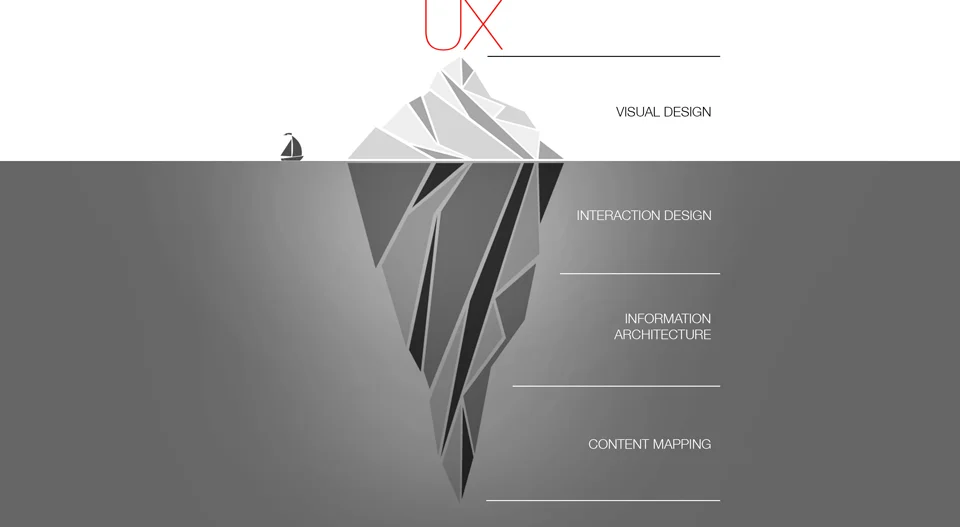

Good UX Design is more than meets the eye. The visual interface – the look and feel – is only the tip of the iceberg. Beneath the surface lies the foundation of a successful design: effective information architecture and engaging interaction.




FUNCTIONS IN YOUR CAR

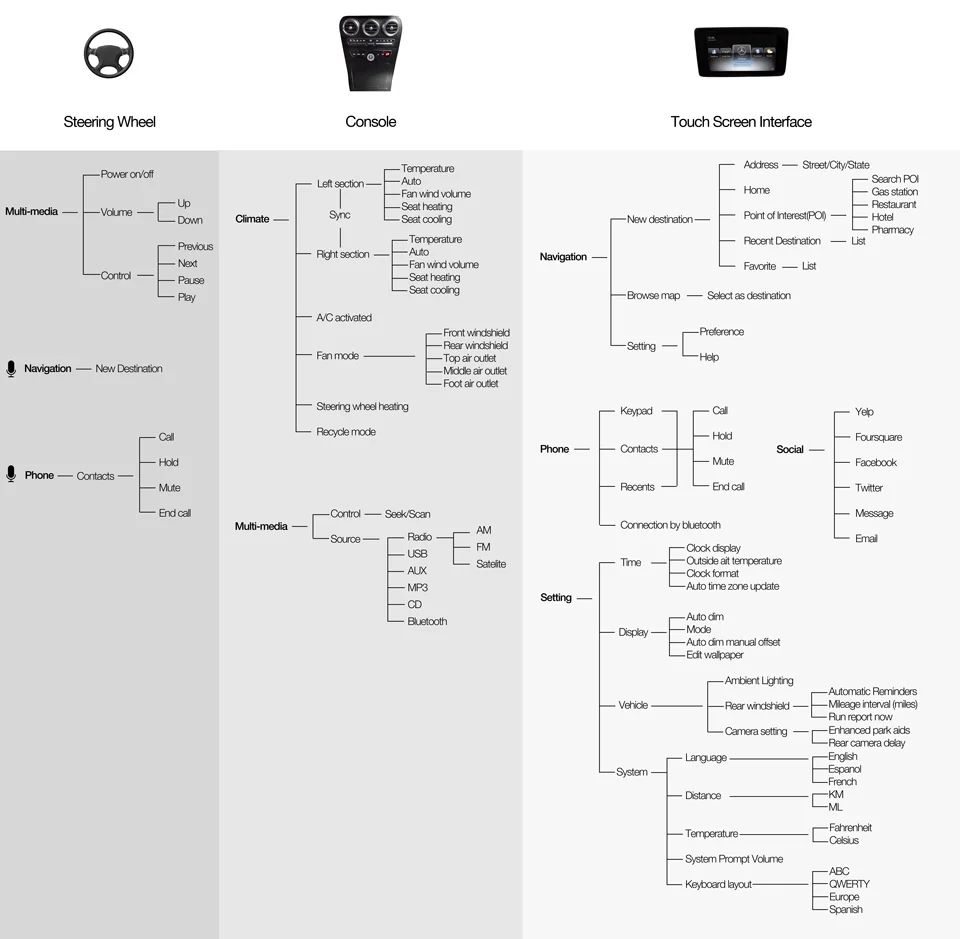

CONTENT MAPPING





FOUNDATION OF THE SYSTEM

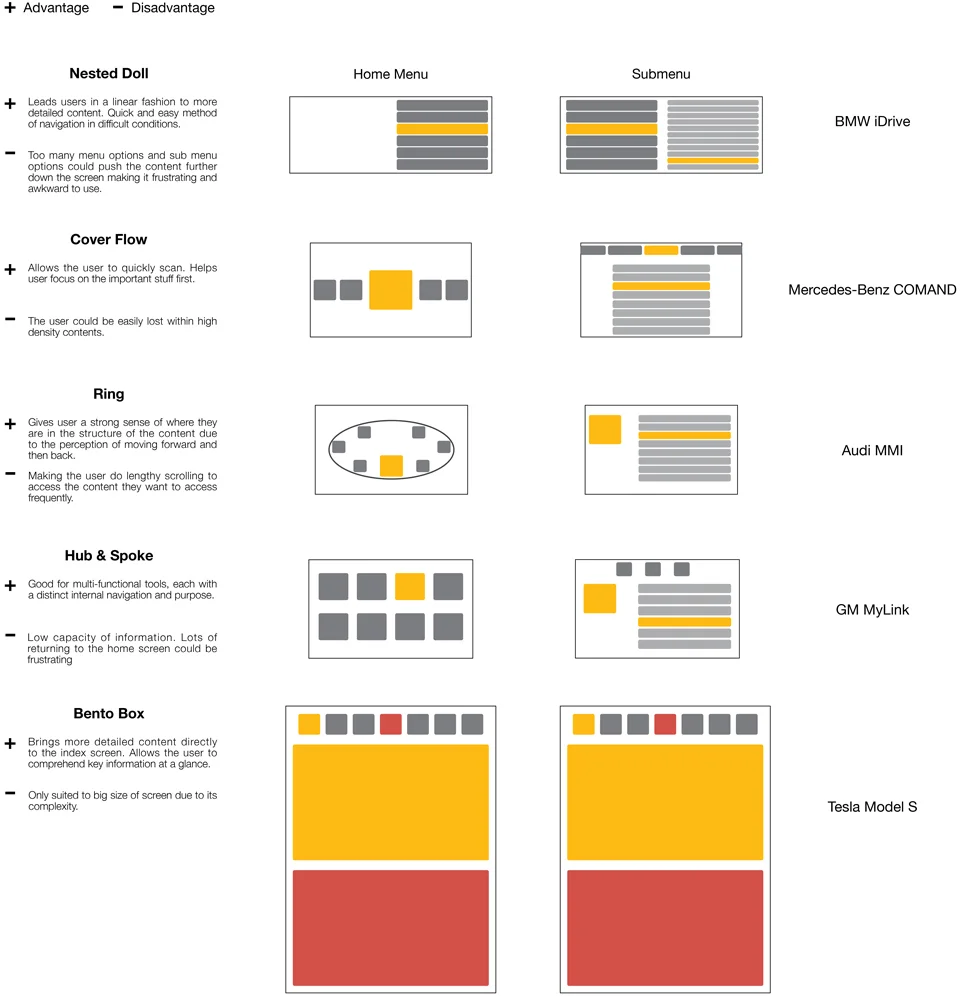

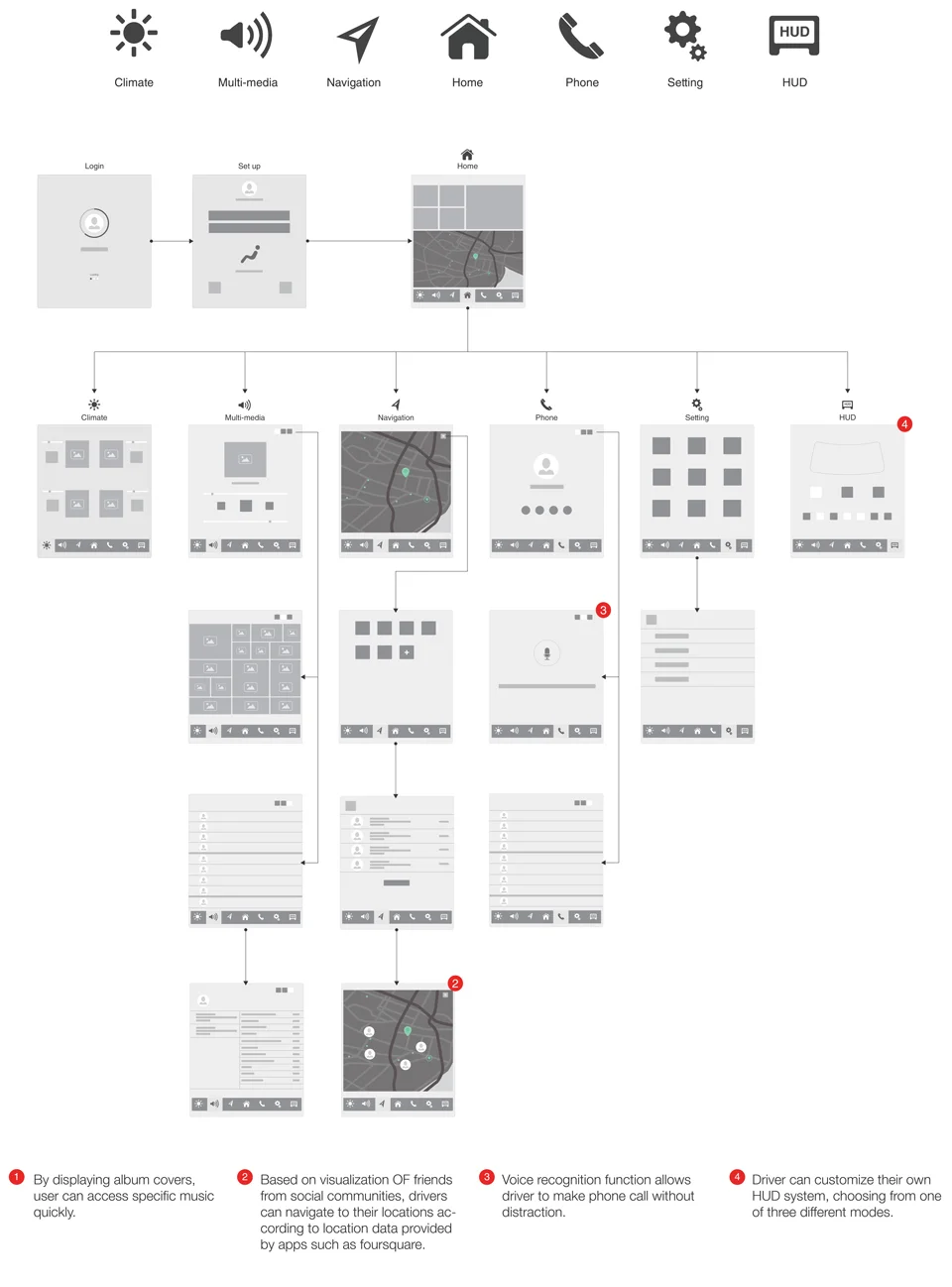

INFORMATION ARCHITECTURE





Prototype


SCROLL DOWN

Prototype

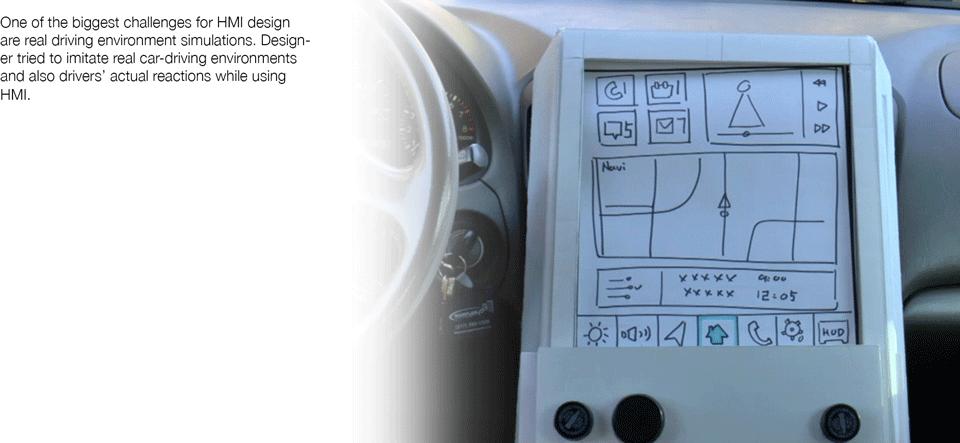

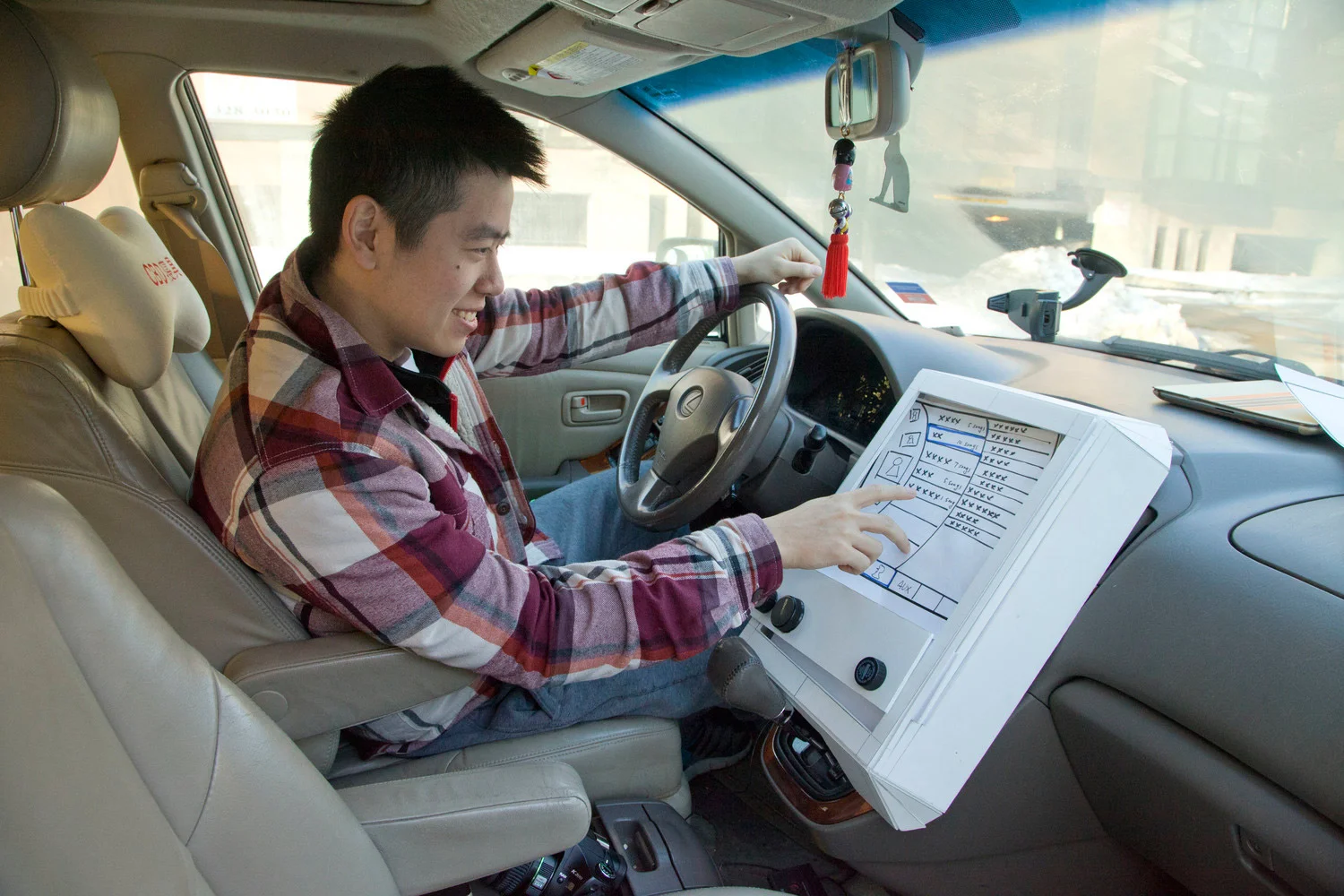

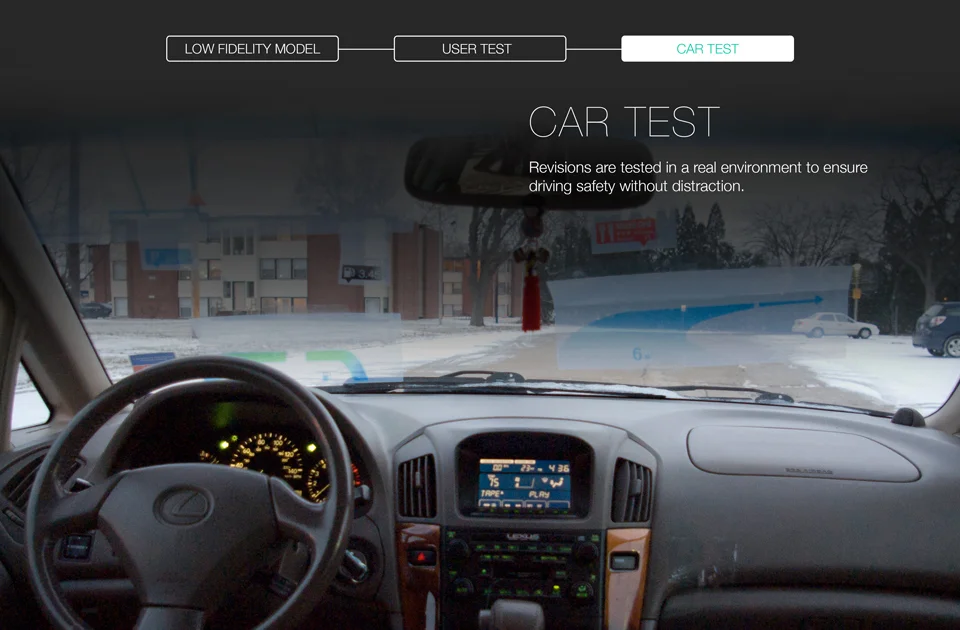

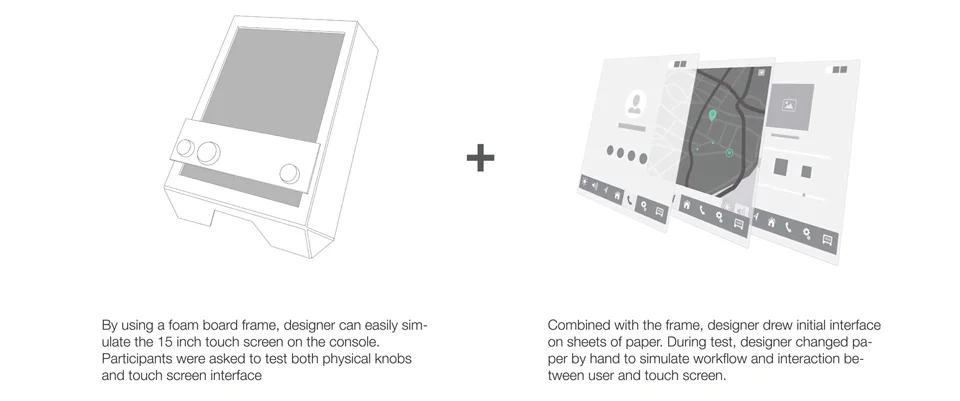

TIME-SAVING TEST

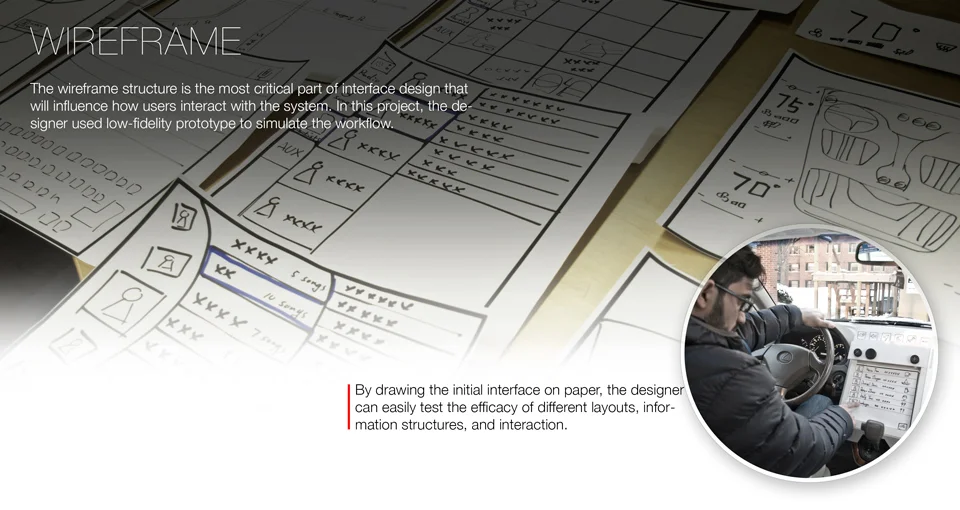

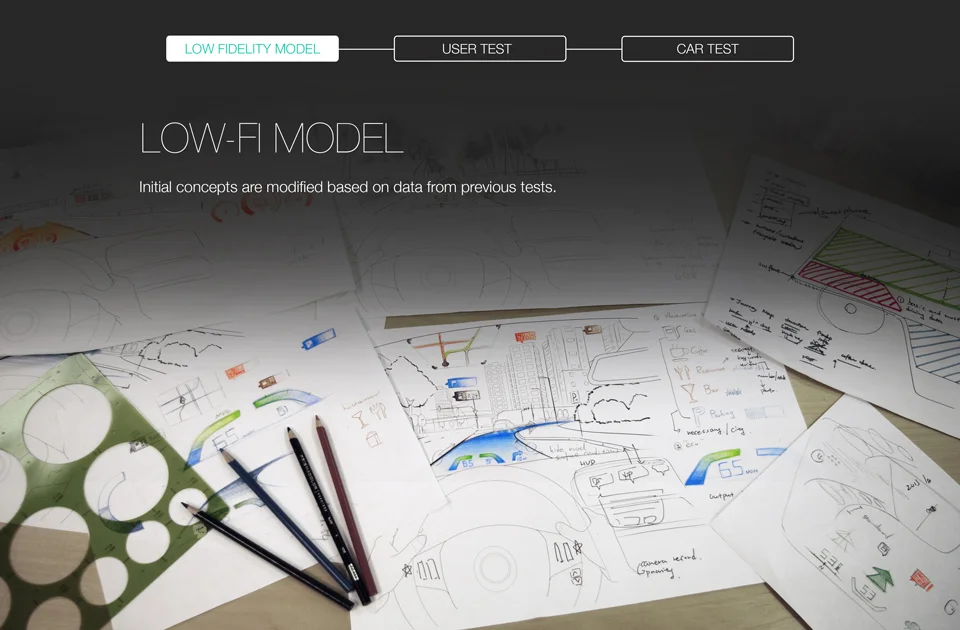

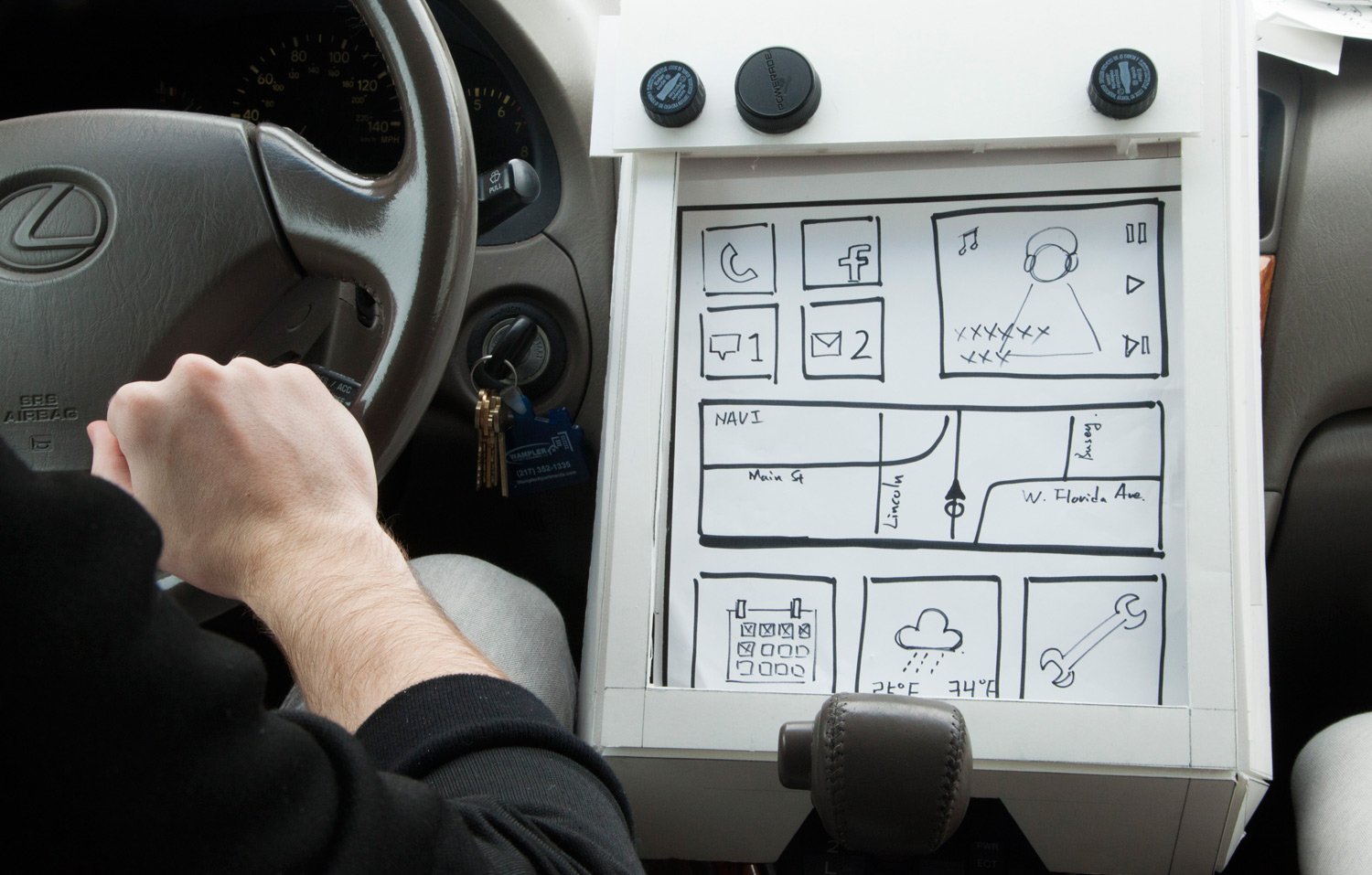

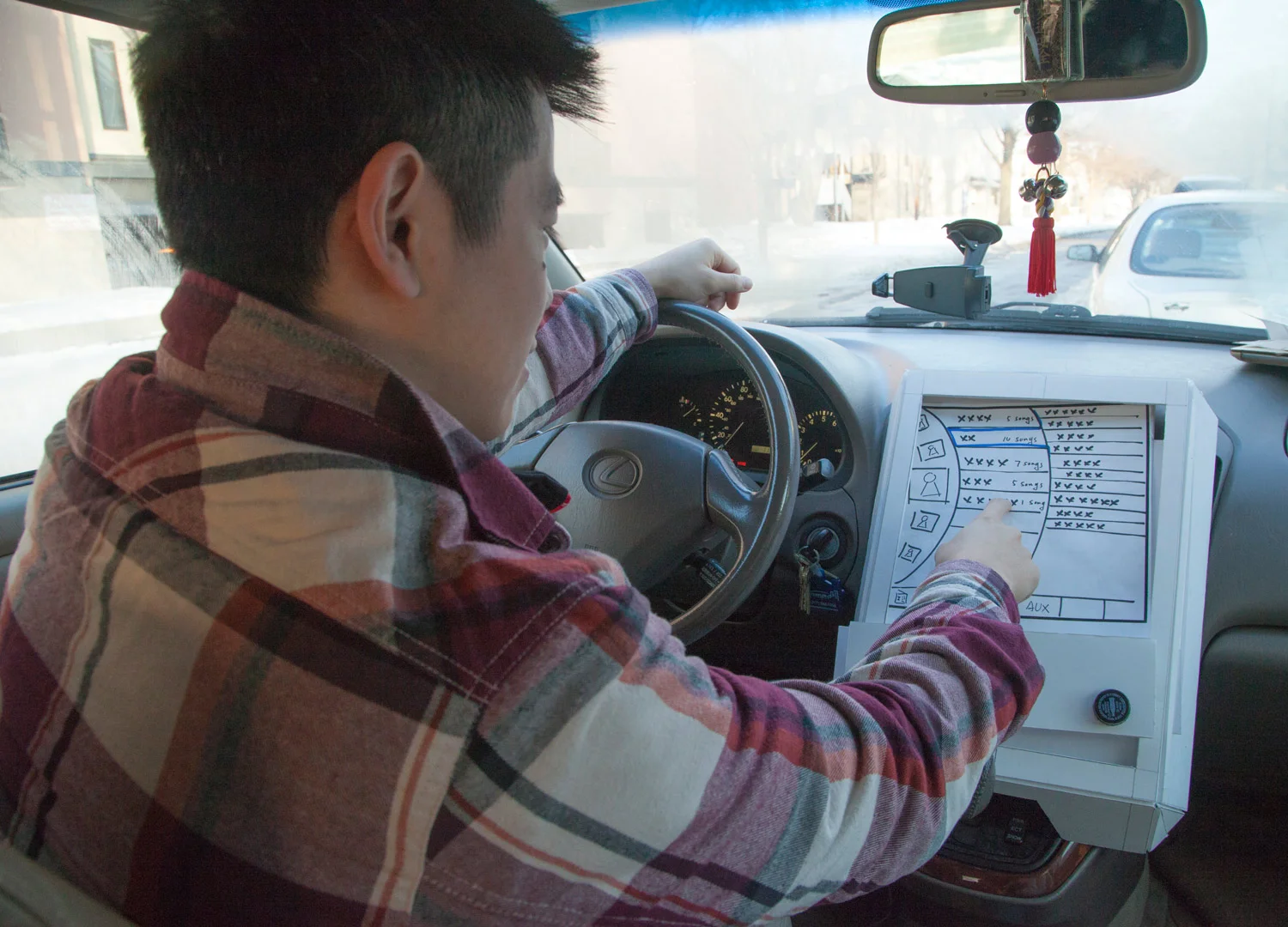

LOW FIDELITY MODEL



low-fi model.jpg


ALL ABOUT USER

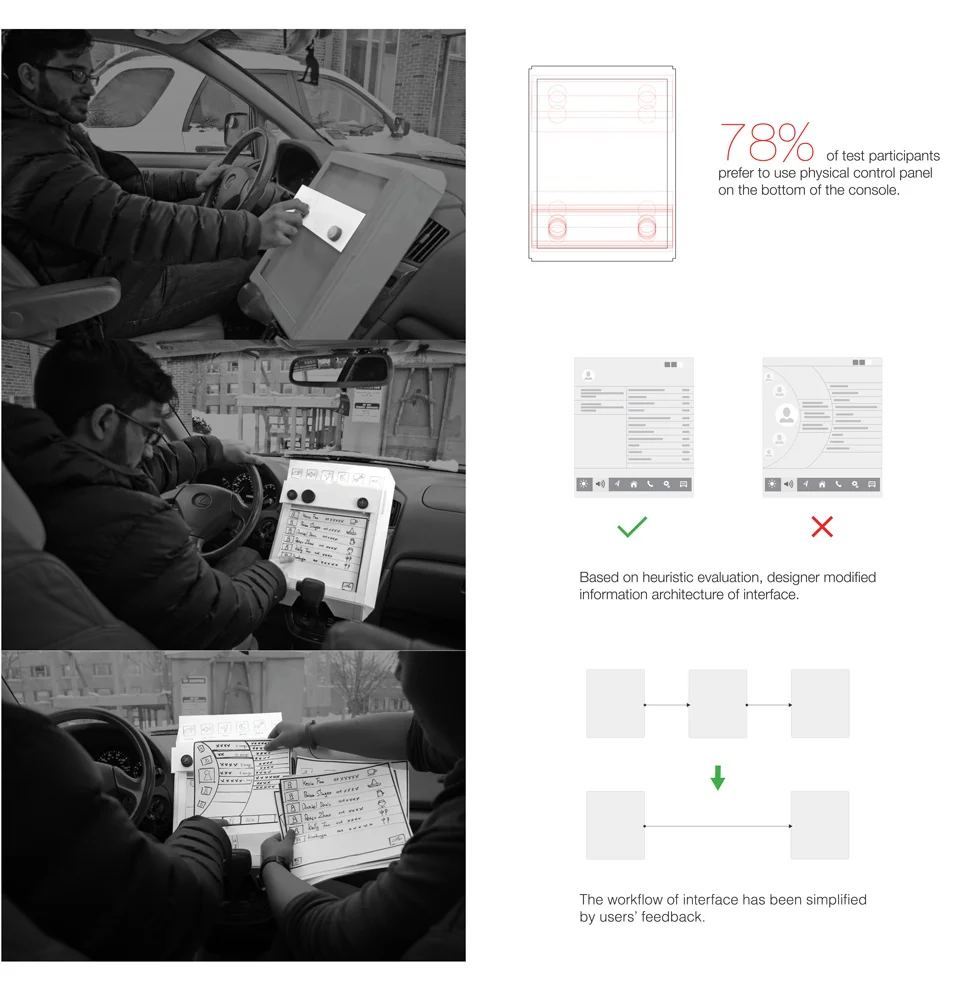

DESIGN EVALUATION

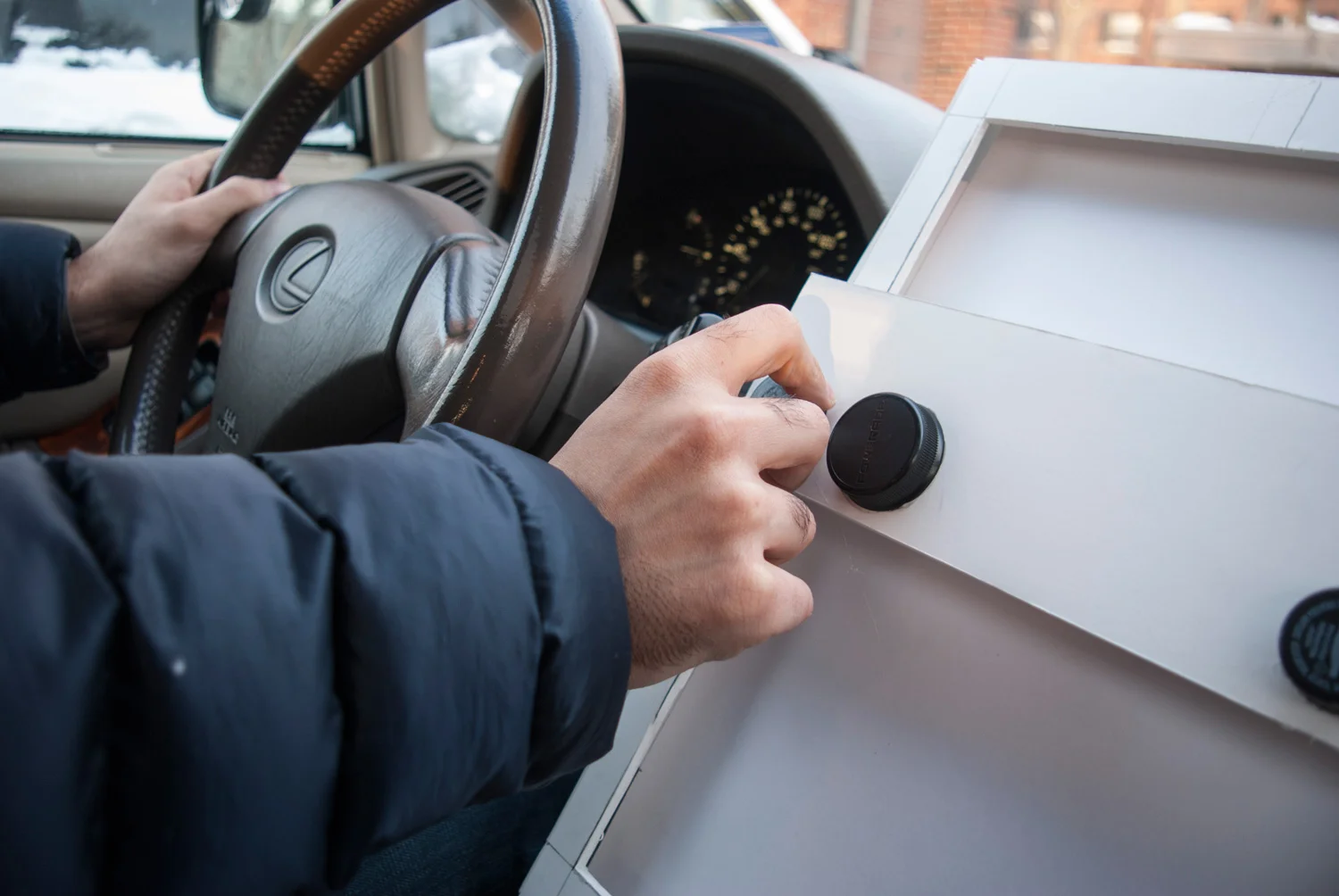

REAL PERSON REAL FEEDBACK

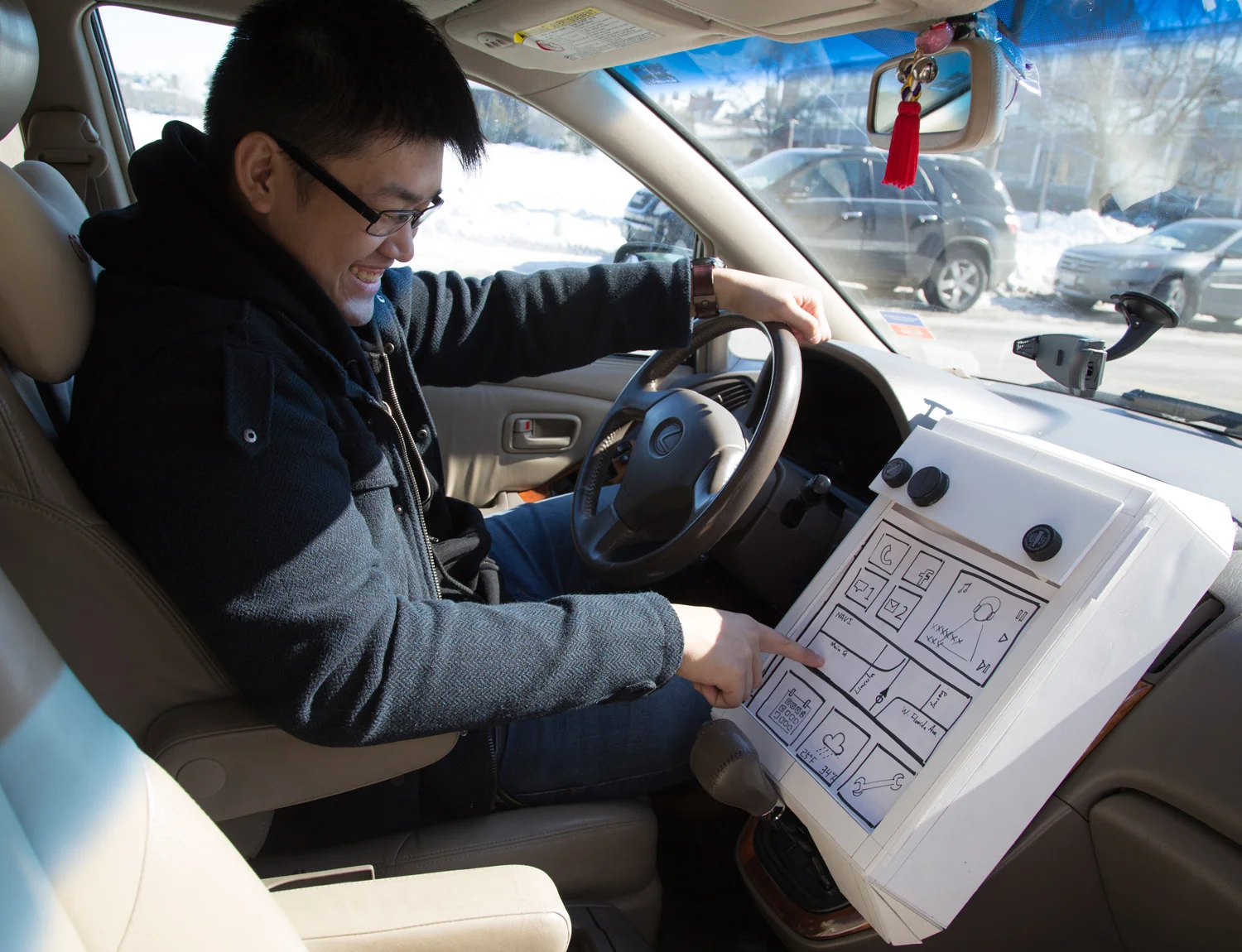

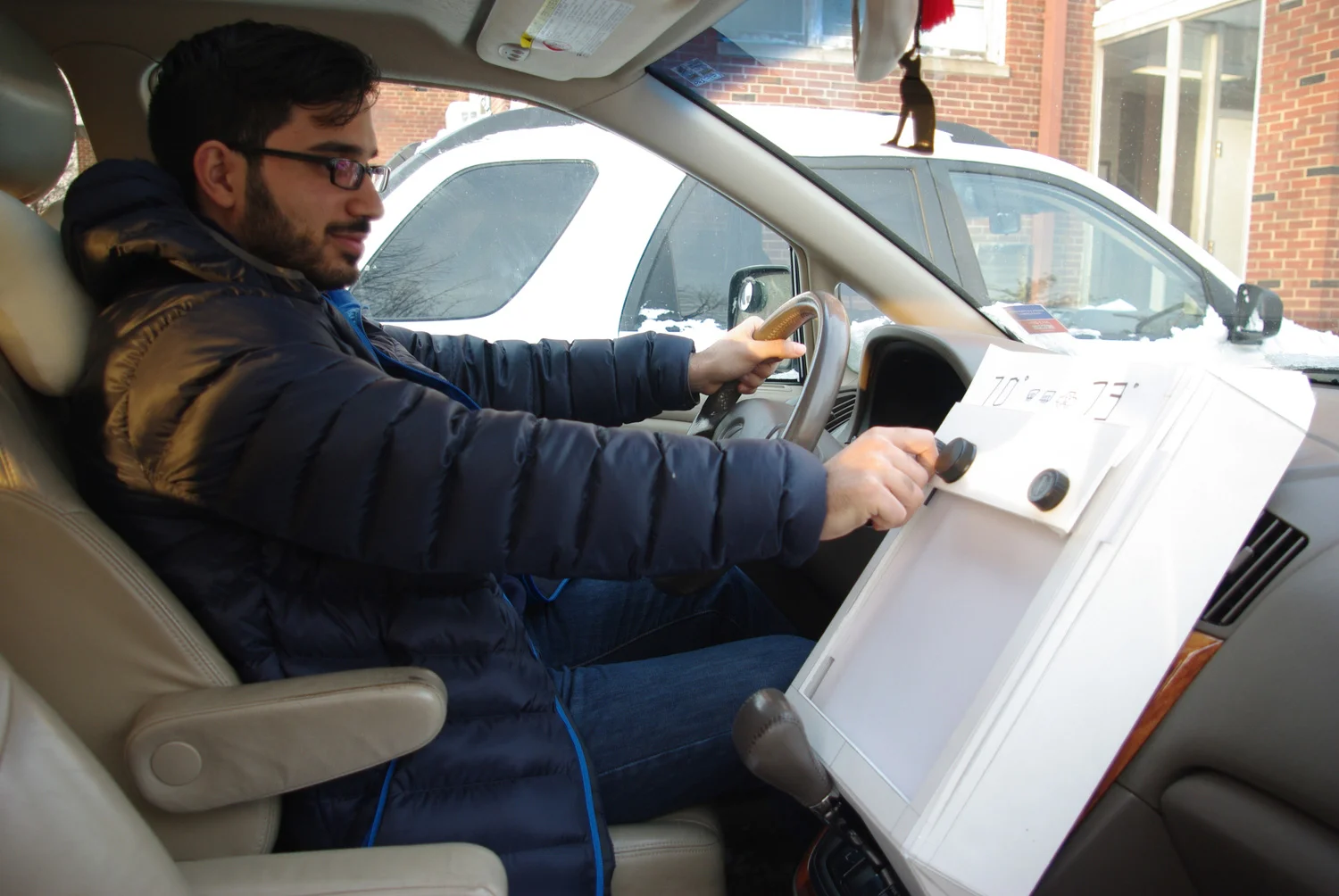

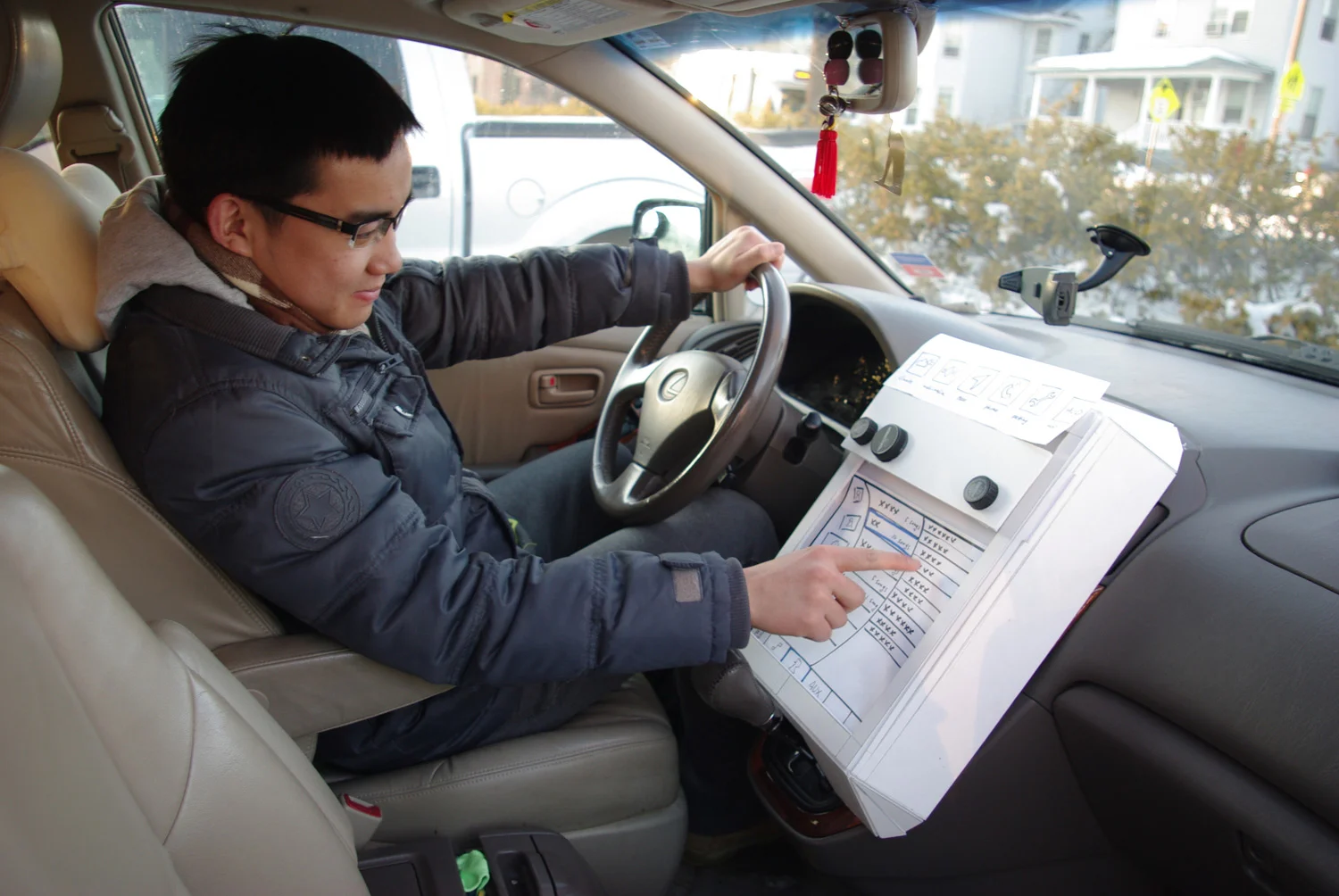

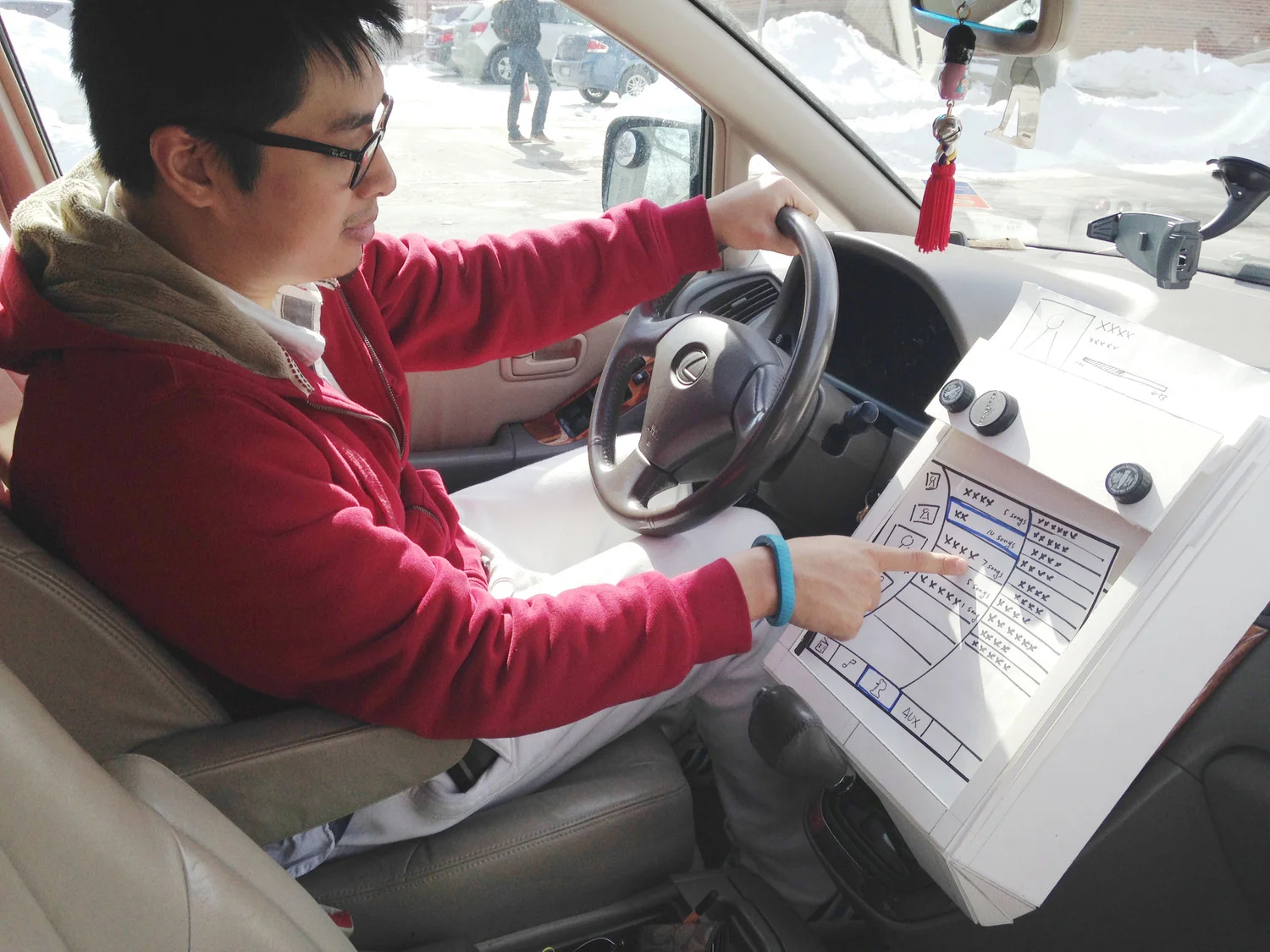

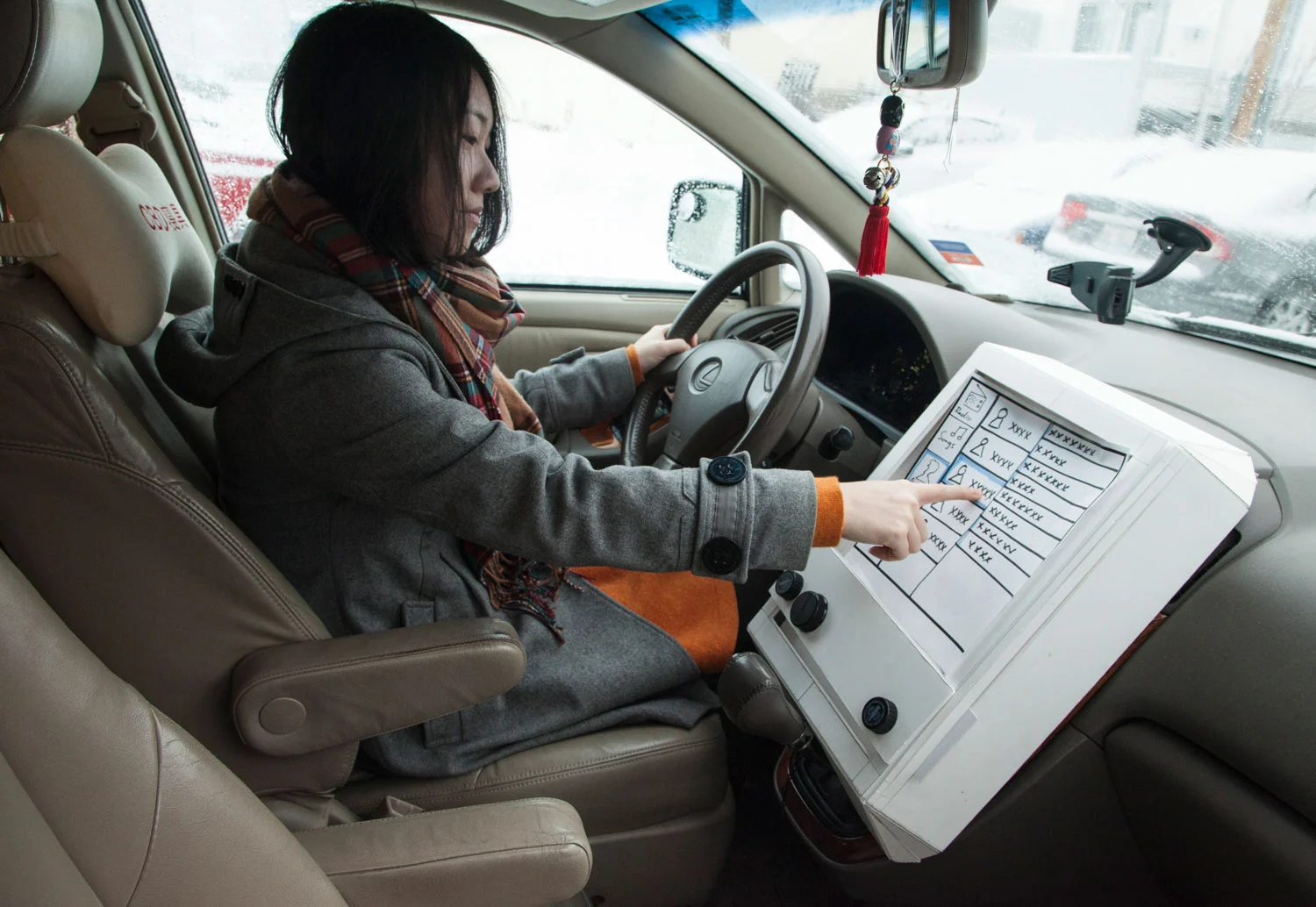

USER TEST

design-2000 TEST.jpg

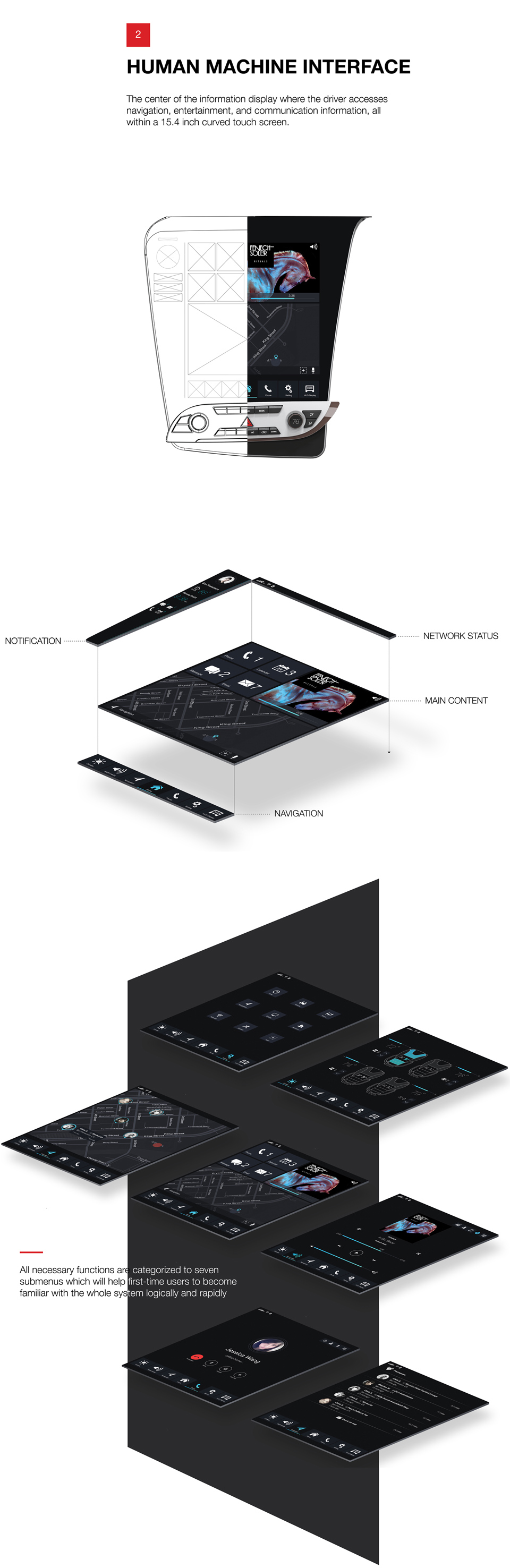

Design Presentation


SCROLL DOWN

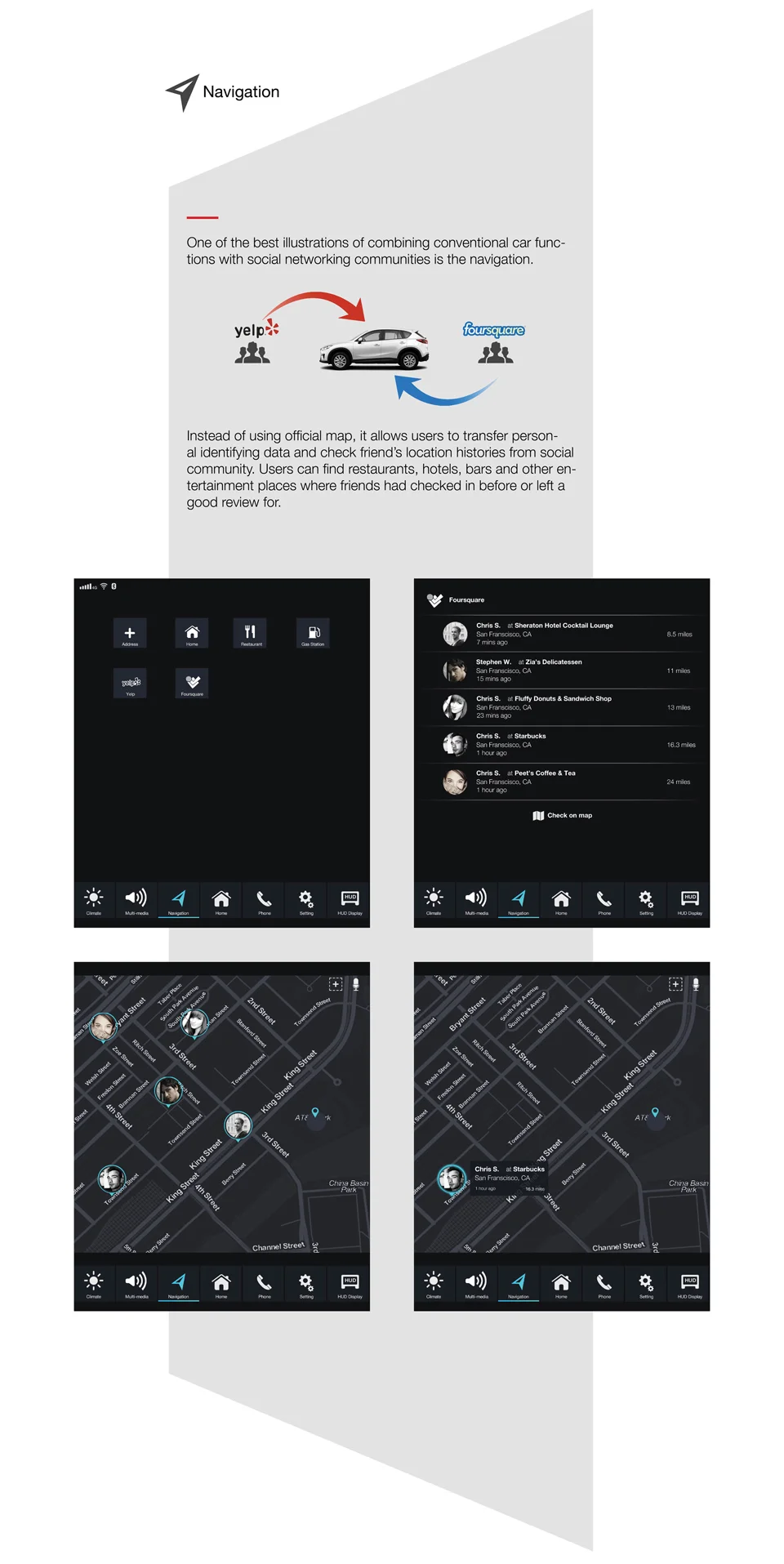

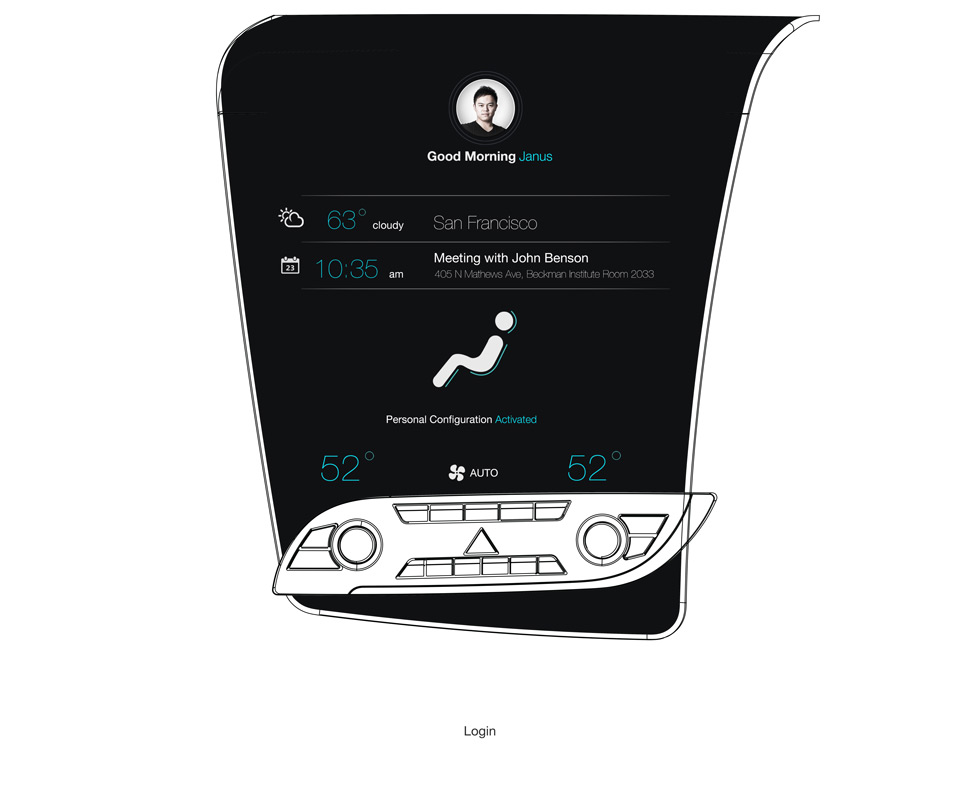

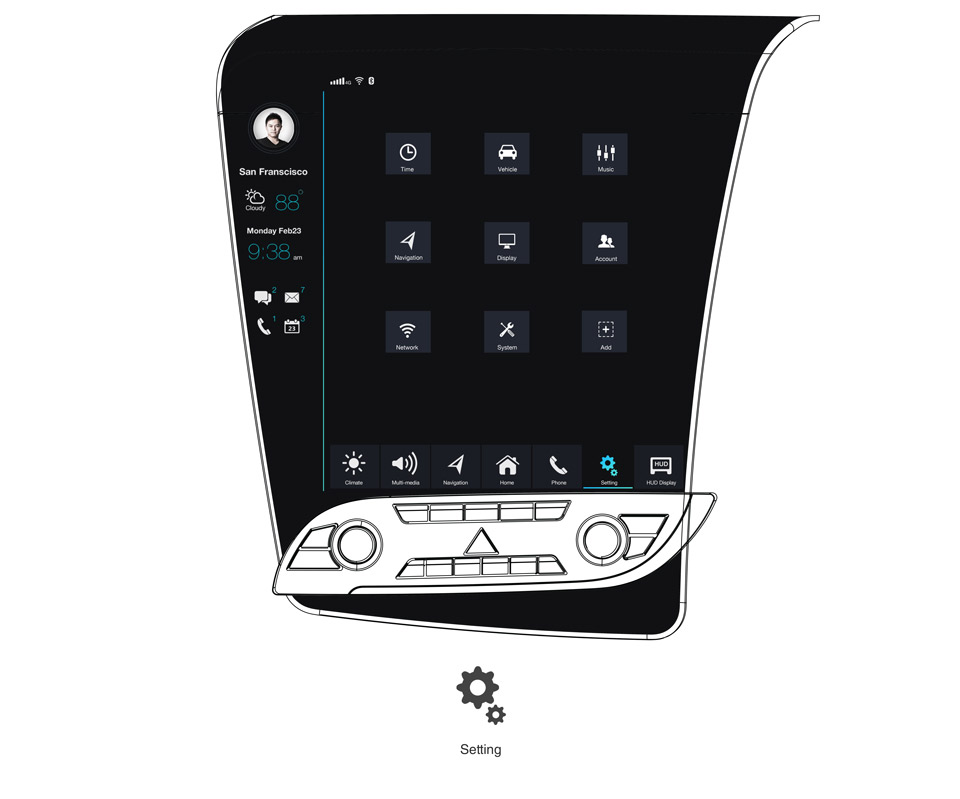

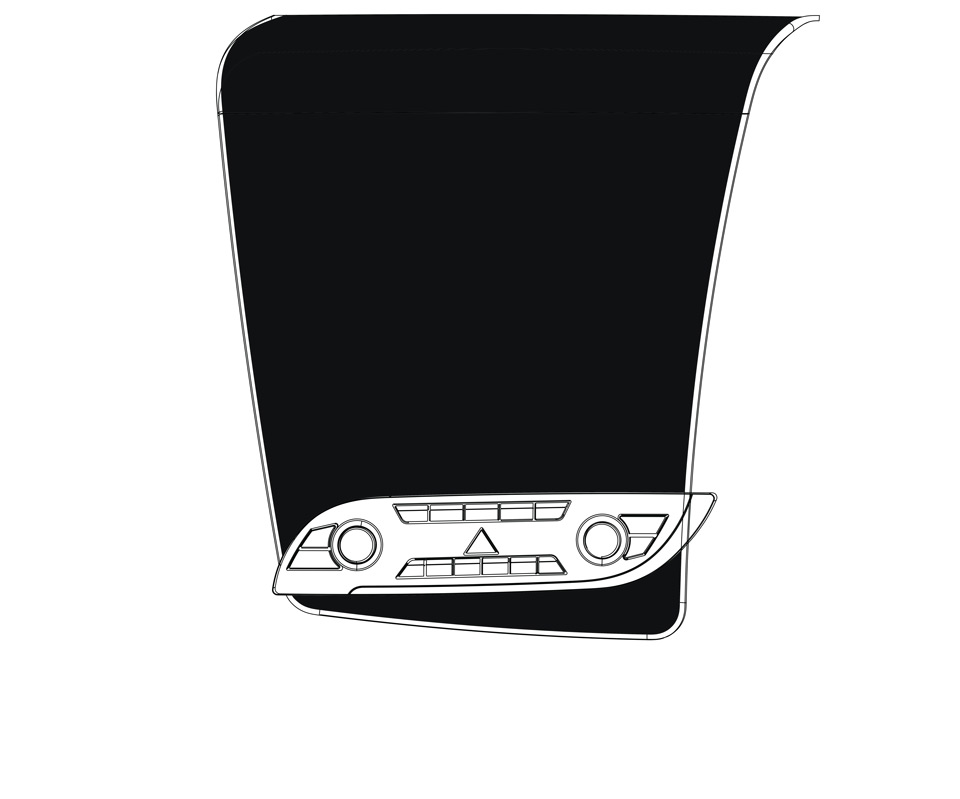

Design Presentation

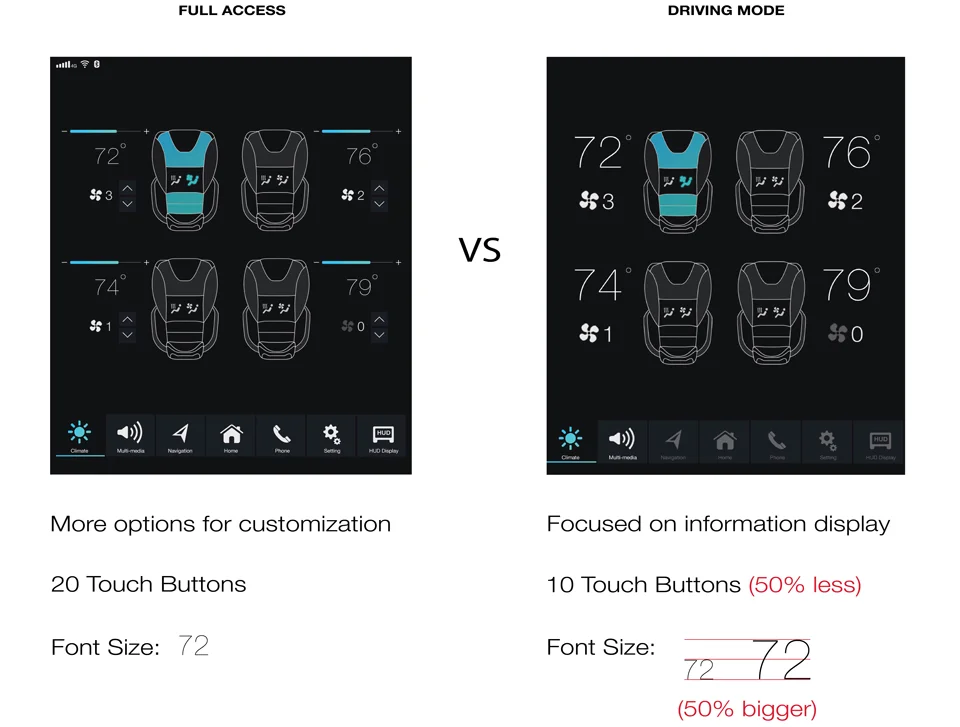

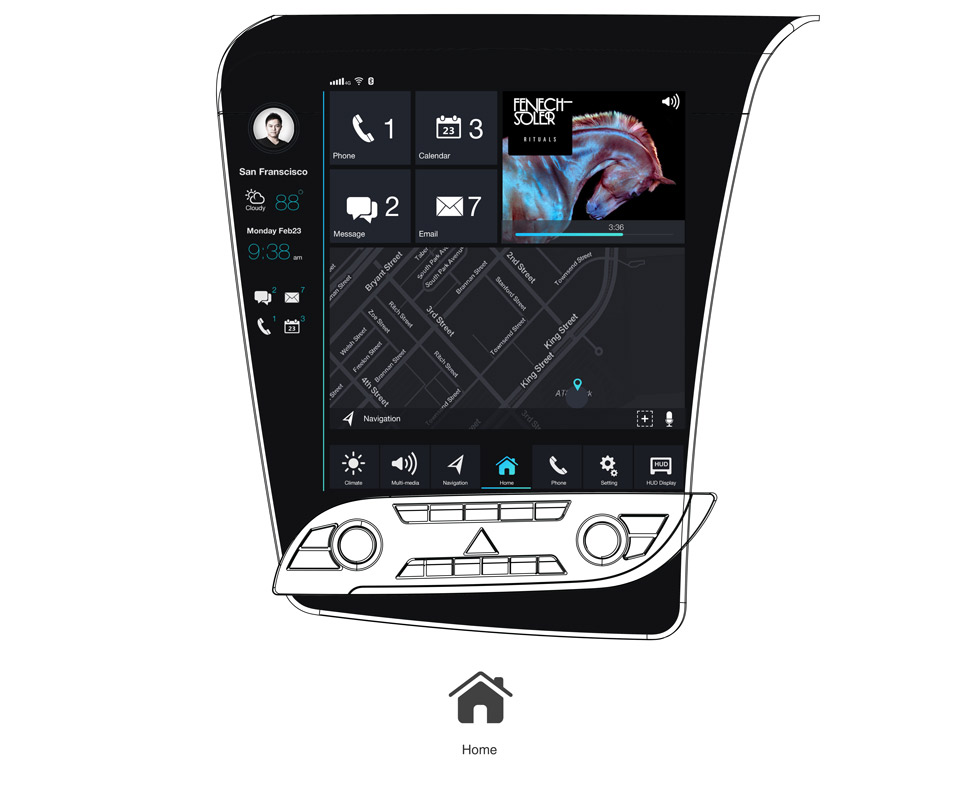

FULL ACCESS

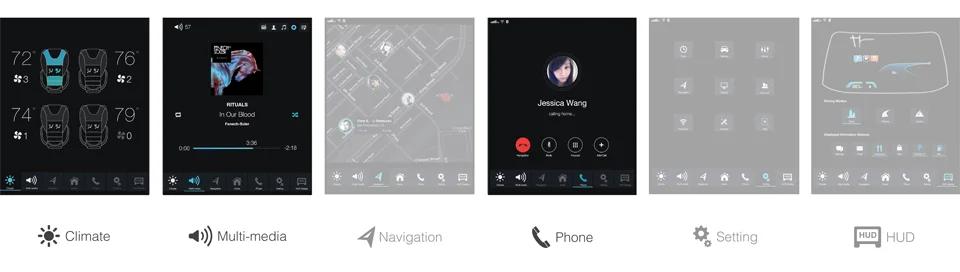

When car is stationary, drivers have full access for the whole system.



DRIVING MODE

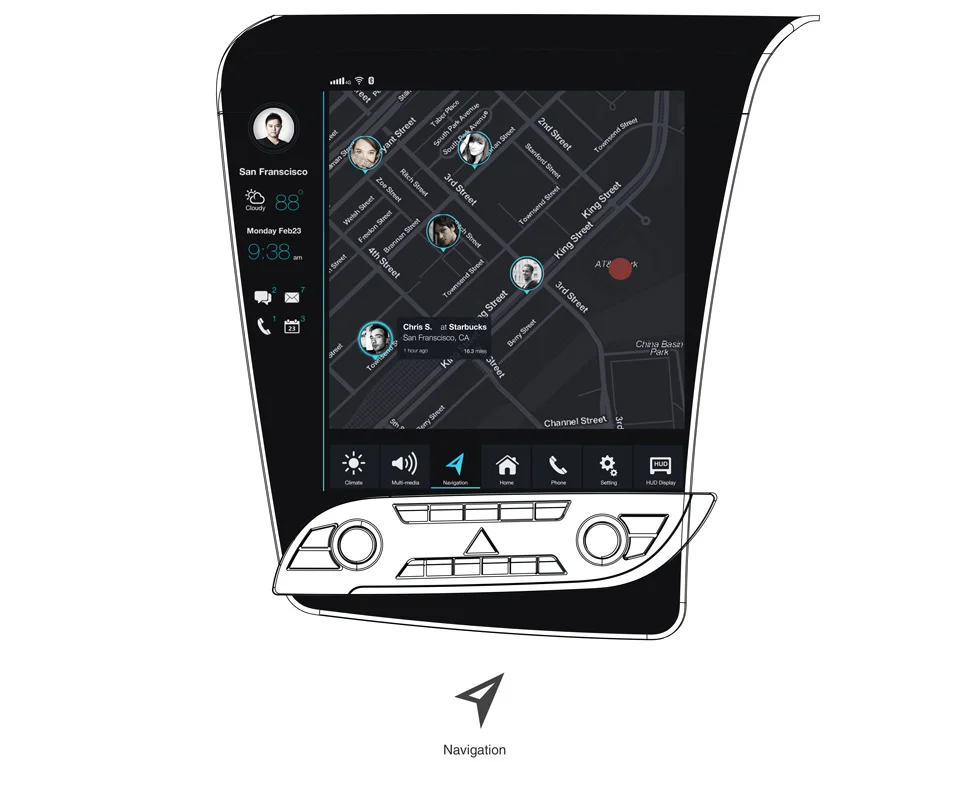

Drivers are limited to using most functions (navigation,settings, and HUD) when they are driving. It helps drivers to reducing distraction and focusing on the road in front. Navigation function will transfer to HUD automatically.



DESIGN FOR DIFFERENT SCENARIOS

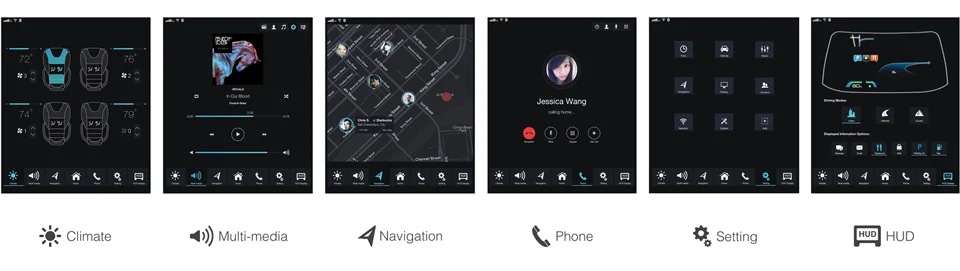

INTERFACE DETAILS

Beyond limiting functions available to drivers, interfaces are also modified in driving mode. Prioritizing reduction of driver distractions, the interface in driving mode uses bigger images and fonts. Also the layout of the interface has been simplified to help drivers to receive information as quickly as possible.
